304 Stainless Steel Etched Sheet SUS304 Stainless Steel Sheet Etched
ASTM A240 2B 304 stainless steel sheet with various surface treatment options for comprehensive industrial applications.
Surface Treatment Options
| Surface Finish |
Characteristics and Application |
| NO.2B |
Better surface brightness and flatness than NO.2D. Through special surface treatment to improve mechanical properties, nearly satisfies comprehensive uses. |
| NO.1 |
Surface finished by heat treatment and pickling or corresponding processes after hot rolling. |
| NO.4 |
Polished with abrasive belt of grit #150-#180, better brightness with discontinuous coarse striations. Used for bathtubs, building ornaments, electrical appliances, kitchen utensils, and food processing equipment. |
| HL |
Polished with abrasive belt of grit #150-#320 on NO.4 finish with continuous streaks. Mainly used for building ornaments, elevators, building doors, and frontal plates. |
| BA |
Cold rolled, bright annealed and skin-passed. Excellent brightness and good reflexivity like mirror. Suitable for kitchen apparatus and ornaments. |
| 8K |
Excellent brightness and preferred reflexivity, can be used as mirror. |
Chemical Composition
C: ≤0.08, Si: ≤1.0, Mn: ≤2.0, Cr: 18.0~20.0, Ni: 8.0~10.0, S: ≤0.03, P: ≤0.045
Physical Properties
| Property |
Value |
Property |
Value |
| Tensile strength σb (MPa) |
≥ 520 |
Specific heat capacity (0~100°C, KJ/kgK) |
0.50 |
| Yield strength σ0.2 (MPa) |
≥ 205 |
Thermal conductivity (W/m·K) |
16.3 (100°C), 21.5 (500°C) |
| Elongation δ5 (%) |
≥ 40 |
Linear expansion coefficient |
17.2 (0~100°C), 18.4 (0~500°C) |
| Section shrinkage ψ (%) |
≥ 60 |
Resistivity (20°C, 10⁻⁶ Ω·m) |
0.73 |
| Hardness |
≤ 187HB; ≤ 90HRB; ≤ 200HV |
Longitudinal elastic modulus (20°C, KN/mm²) |
193 |
| Melting point (°C) |
1398 ~ 1454 |
Specific heat capacity |
0.50 |
Corrosion Resistance
Stainless steel's resistance to corrosion and staining, low maintenance requirements, and familiar luster make it an ideal material for many applications. The alloy is used in cookware, cutlery, household hardware, surgical instruments, major appliances, industrial equipment, and as an automotive and construction material in large buildings. It is particularly suitable for commercial kitchens and food processing plants, as it can be steam-cleaned and sterilized without needing paint or other surface finishes.
Applications
- Food preparation equipment, especially in chloride environments
- Chemical processing equipment
- Laboratory benches and equipment
- Rubber, plastics, pulp & paper machinery
- Pollution control equipment
- Boat fittings, valves and pump trim

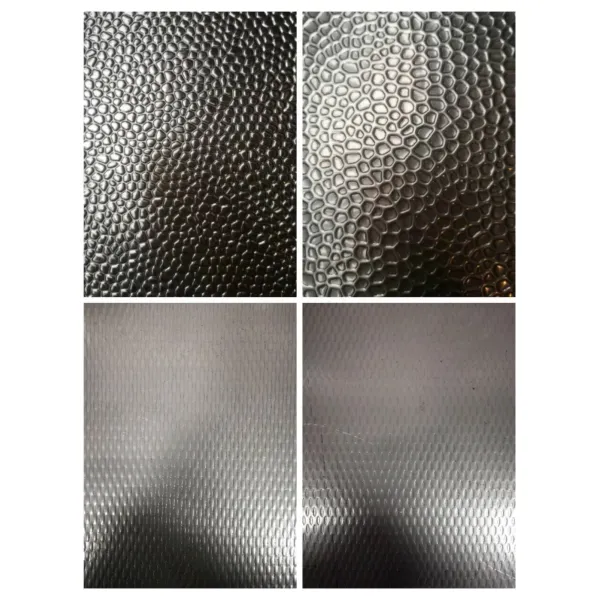

Product Images
