Stainless Steel Angle Bar & Channel Bar
High-quality 304, 316L, 310S, 2205 stainless steel angle bars and channel bars available in sizes ranging from 20x20mm to 100x100mm. Our products meet international standards and are suitable for various industrial applications.
Product Specifications
- Product Name: Stainless Steel Angle Bar / Stainless Steel Channel Bar
- Grades: 201, 304, 310S, 316L, 321, 2205
- Standards: ASTM, GB, DIN
- Angle Bar Size: 30×30×3 - 200×200×10mm × 6m length
- Channel Bar Size: 50×30×3 - 200×100×10mm × 6m length
- Service: Cutting
- Packing: Waterproof paper surround or wooden pallets
- Brand: TSINGSHAN
Stainless Steel Angle Bar Specifications
| Size A×B (mm) | 3mm | 4mm | 5mm | 6mm | 7mm | 8mm | 9mm | 10mm |
|---|
| 20×20 | 0.894 | 1.13 | 1.38 | | | | | |
| 25×25 | 1.13 | 1.45 | 1.77 | 2.06 | | | | |
| 30×30 | 1.37 | 1.77 | 2.17 | 2.53 | | | | |
| 35×35 | 1.61 | 2.09 | 2.57 | 3.01 | | | | |
| 40×40 | 1.85 | 2.41 | 2.97 | 3.49 | | | | |
| 45×45 | 2.12 | 2.76 | 3.40 | 4.00 | | | | |
| 50×50 | 2.36 | 3.07 | 3.79 | 4.46 | 5.13 | 5.76 | 6.42 | 7.06 |
| 60×60 | | | 4.58 | 5.42 | 6.24 | 7.03 | | |
| 63×63 | | | 5.03 | 5.95 | 6.84 | 7.71 | 8.60 | 9.48 |
| 70×70 | | | 5.42 | 6.42 | 7.39 | 8.34 | 9.31 | 10.3 |
| 75×75 | | | 5.82 | 6.89 | 7.95 | 8.97 | 10.0 | 11.1 |
| 80×80 | | | | 7.37 | 8.50 | 9.61 | 10.7 | 11.8 |
| 90×90 | | | | 8.33 | 9.65 | 11.90 | 12.2 | 13.4 |
| 100×100 | | | | 9.28 | 10.8 | 12.20 | 13.6 | 15.0 |
Weight per meter (kg)
Stainless Steel Channel Bar Specifications
| Size H×B (mm) | 3mm | 4mm | 5mm | 6mm | 7mm | 8mm | 9mm | 10mm | 12mm |
|---|
| 40×20 | 1.79 | | | | | | | | |
| 50×25 | 2.27 | | | | | | | | |
| 60×30 | 2.74 | 3.56 | 4.37 | 5.12 | | | | | |
| 70×35 | 3.23 | 4.21 | 5.17 | 6.08 | | | | | |
| 80×40 | 3.71 | 4.84 | 5.96 | 7.03 | | | | | |
| 90×45 | 4.25 | 5.55 | 6.83 | 8.05 | | | | | |
| 100×50 | 4.73 | 6.18 | 7.62 | 8.98 | 10.3 | 11.7 | 13.0 | 41.2 | |
| 120×60 | | | 9.20 | 10.9 | 12.6 | 14.2 | | | |
| 130×65 | | | 10.1 | 11.9 | 13.8 | 15.5 | 17.3 | 19.1 | |
| 140×70 | | | | 12.9 | 14.9 | 16.8 | 18.8 | 20.7 | |
| 150×75 | | | | 13.9 | 16.0 | 18.1 | 20.2 | 22.2 | 26.3 |
| 160×80 | | | | 14.8 | 17.1 | 19.3 | 21.6 | 23.8 | 28.1 |
| 180×90 | | | | 16.7 | 19.4 | 22.0 | 24.5 | 27.0 | 32.0 |
| 200×100 | | | | 18.6 | 21.6 | 24.5 | 27.4 | 30.2 | 35.8 |
Weight per meter (kg)
Company Overview
We are a comprehensive stainless steel enterprise specializing in wholesale, material processing, storage, and distribution. Located in Wuxi - the stainless steel trading center, with a total investment of 10 million yuan and annual sales exceeding 300 million yuan.
We maintain long-term cooperative relationships with renowned steel mills including Taiyuan, East, Zhang Pu, Hongxing, Zhejiang Qingshan, and distribute stainless steel plates imported from Sweden, North America, South Africa, Japan, and Korea.
Material Range & Processing Capabilities
Available Materials: 310S, 309S, 316L, 321, 304L, TP304, 347H, 17-4PH, 317L, 2507, 2205, 904L, high-temperature resistant stainless steel series, duplex stainless steel series, and super stainless steel series.
Processing Equipment: Plasma cutting machines, coil material opening equipment, laser cutting machines, 8K mirror finishing, grinding wire drawing, film and titanium plating equipment.
Specialized Services: Thick plate cutting (up to 150mm), cutting rounds, squares, shaped parts, casting parts, forging parts. Custom orders available according to customer specifications.
Product Applications

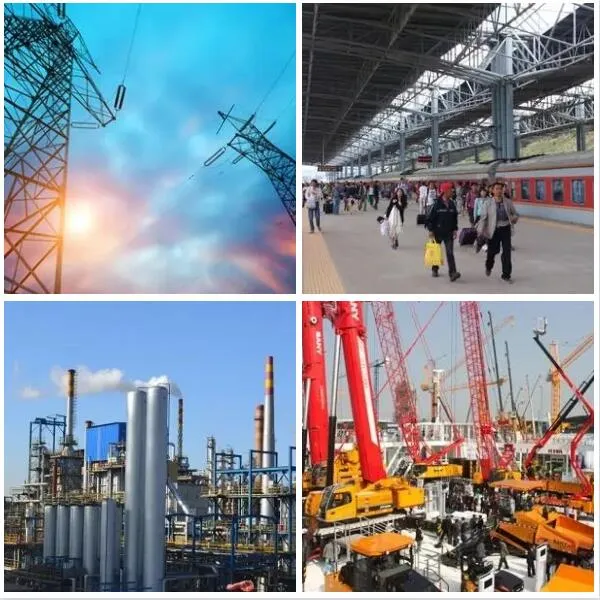

Stainless steel angle bars and channel bars are primarily used for frame structures including:
- High-voltage power transmission towers
- Steel structure bridge frameworks
- Tower crane columns and booms on construction sites
- Workshop columns and beams
- Air-conditioning and solar-powered shelf supports
- Building structures and engineering construction
- Ship beams and industrial furnaces
Our stainless steel products are widely used in machinery, chemical, petroleum, boiler, heat exchanger, food machinery, beverage machinery, medical equipment, and various other industries.
