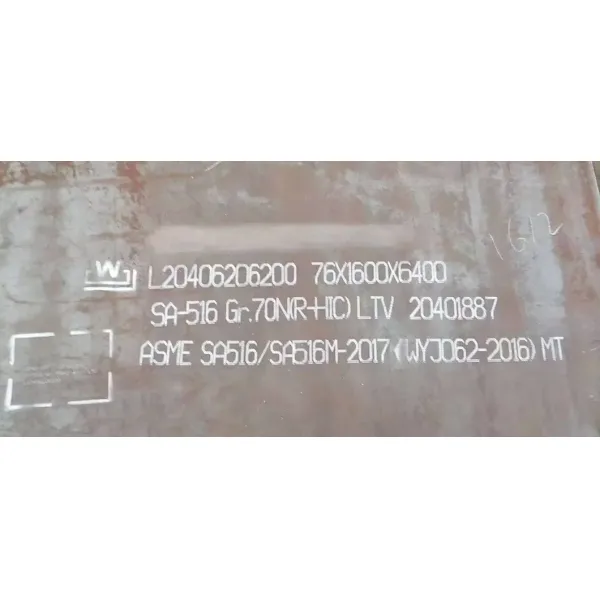

ASME SA516 Steel Plate
SA516Gr70 | ASME SA516 Grade 70 | SA516 Gr.70 STEEL PLATE
ASME SA516 standard specification for pressure vessel plates, carbon steel for moderate and lower-temperature service.
ASME SA516 plates 40mm and under in thickness is normally supplied in the as-rolled condition. The plates may be ordered normalized or stress relieved, or both. ASME SA516 grade plates over 40mm in thickness shall be normalized.
Supplementary Technology
- HIC Test
- NACE MR0175
- Z15 | Z25 | Z35
- S1 | S2 | S3 | S4.1 | S5 | S6 | S7 | S8 | S9 | S11 | S12 | S14 | S17
Available Dimensions
- Thickness: 6MM to 300MM
- Width: 1500mm to 4050mm
- Length: 3000mm to 15000mm
Gangsteel is specialized in supplying ASME SA516 steel plate in SA516 grade 70.
SA516 Grade 70 Chemical Composition
| Grade SA516 grade 70 |
C |
Si |
Mn |
P |
S |
| Thick <12.5mm |
0.27 |
0.13-0.45 |
0.79-1.30 |
0.035 |
0.035 |
| Thick 12.5-50mm |
0.28 |
0.13-0.45 |
0.79-1.30 |
0.035 |
0.035 |
| Thick 50-100mm |
0.30 |
0.13-0.45 |
0.79-1.30 |
0.035 |
0.035 |
| Thick 100-200mm |
0.31 |
0.13-0.45 |
0.79-1.30 |
0.035 |
0.035 |
| Thick >200mm |
0.31 |
0.13-0.45 |
0.79-1.30 |
0.035 |
0.035 |
Carbon Equivalent: Ceq = C+Mn/6+(Cr+Mo+V)/5+(Ni+Cu)/15%
SA516 Grade 70 Mechanical Property
| Grade |
Thickness |
Yield Min Mpa |
Tensile Mpa |
Elongation Min % |
| SA516 grade 70 |
6-50 mm |
260 |
485-620 |
21% |
| SA516 grade 70 |
50-200 mm |
260 |
485-620 |
17% |
Related Steel Plate Categories
Shipbuilding steel plate
Alloy steel plates
High strength plate
Carbon steel plate
Stainless steel plate
Equivalent Steel Grade of SA516 Grade 70
| Europe |
Belgium |
Germany |
France |
Italy |
Sweden |
India |
Japan |
|
E St E315 |
|
Fe 460-2-KG |
SS29,12,01 |
|
|
|
If you need more stock steel plates in pressure vessel steel plate, please click warehouse sizes.
